How to Test a Car Battery With a Multimeter

For a conventional 12 V lead-acid car battery, look for about 12.6–12.8 V after the battery has rested. Then measure voltage while the starter cranks and again with the engine running.

A multimeter measures voltage—not cold-cranking capacity, reserve capacity or remaining life. A battery can read 12.6 V and still fail under load, so treat these checks as a diagnostic screen rather than a final health verdict.

Car battery voltage readings at a glance

The resting figures are reference values, not chemistry- and temperature-independent limits. VARTA gives about 12.8 V as ideal open-circuit voltage for a conventional wet battery and recommends recharging below 12.4 V. Fluke uses approximately 12.6 V for full charge, 12.4 V for 75% and 12.2 V for 50% (VARTA, Fluke).

Use the battery maker’s figures when available. For example, ODYSSEY specifies at least 12.84 V at 77°F (25°C) for a fully charged battery in its AGM range, measured after at least six hours without charging or discharging (ODYSSEY owner’s manual).

1. Prepare the vehicle and meter

1. Park in a ventilated area. Select Park or Neutral, apply the parking brake, and switch off the ignition and accessories.
2. Wear eye protection and remove rings, watches and other metal jewelry. Do not place tools across the terminals. Lead-acid batteries contain corrosive acid and can release explosive hydrogen during charging (OSHA).
3. Do not continue if the battery is cracked, leaking, badly swollen or possibly frozen.
4. Put the black lead in COM and the red lead in the V/Ω socket. Do not use the A or mA socket: placing a meter configured for current across a battery creates a short circuit (Fluke).
5. Select DC volts, shown as V with a solid line over a dashed line. On a manual-ranging meter, choose the 20 V range; otherwise use autorange.

You do not need to disconnect the battery. If it is inaccessible, use only the test or jump points approved in the owner’s manual. Direct battery-post measurements are preferable when investigating cranking voltage because remote points include the intervening cables and connections.

2. Measure resting voltage

A recently driven or charged battery can retain a surface charge and read artificially high. Leave the vehicle off for at least an hour; overnight is better (Haynes).

If waiting is impractical and the vehicle permits normal headlight operation with the engine off, switch the headlights on for about one minute, switch them off, and then test. Fluke recommends this method for removing surface charge (Fluke).

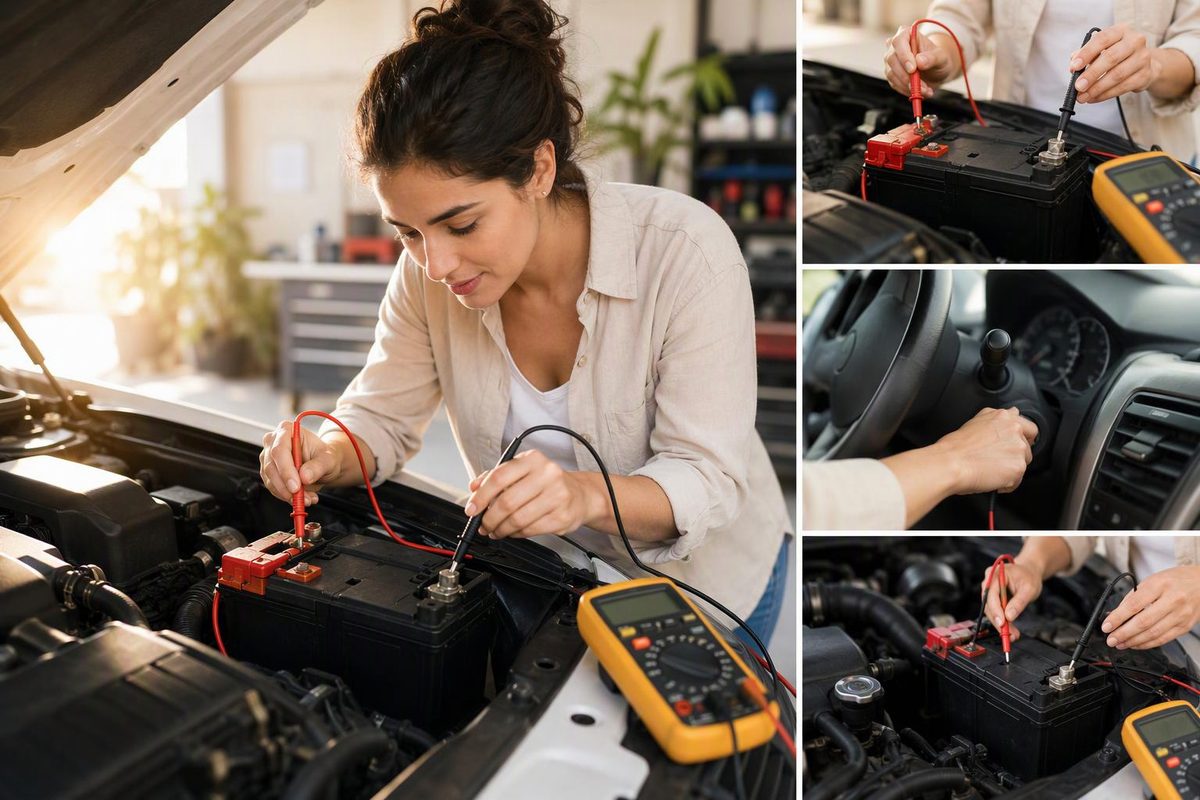

Touch the red probe to the positive (+) post and the black probe to the negative (−) post. A minus sign on a digital meter means the probes are reversed.

• 12.6–12.8 V: Well charged, but not necessarily healthy.
• 12.4–12.5 V: Partly discharged. Charge fully, let the battery rest and retest.
• About 12.2 V or less: Substantially discharged. Recharge it and investigate why it lost charge before deciding to replace it.
• Below 12.0 V: Deeply discharged. Use an appropriate charger and obtain a proper battery test if it does not recover or hold its charge.

Use a charger matched to the battery technology rather than relying on the alternator to recover a deeply discharged battery. See how to choose a 12 V lead-acid charger.

3. Watch voltage while cranking

Leave the probes on the battery posts. Use the meter’s MIN/MAX function if available, or have a helper watch the display while starting the engine. Keep hands and test leads clear of belts, fans and pulleys.

Record the lowest voltage and note how the starter sounds. Do not use one internet cutoff as a universal pass/fail number: cranking voltage depends on battery temperature and charge, engine and starter load, test duration and the vehicle maker’s procedure. Compare the result with the service specification for the vehicle.

A pronounced voltage collapse with slow cranking can indicate:

• a discharged or internally weak battery;
• loose or corroded terminals;
• excessive resistance in a positive cable or ground connection; or
• a starter drawing too much current.

A normal resting reading followed by a large cranking drop is why open-circuit voltage cannot certify battery health. Midtronics notes that a degraded battery can still show 12.6 V when fully charged; an appropriate conductance or load test is needed to assess its ability to deliver current (Midtronics).

If cranking is slow but battery voltage remains comparatively stable, check the starter circuit. As general—not vehicle-specific—voltage-drop guidance, Fluke lists approximately 0.3 V on the positive side and 0.2 V or less on the ground side while cranking (Fluke).

4. Check charging voltage

With the probes still across the battery, start the engine and remain clear of moving parts. Note the voltage at idle. If the vehicle’s service procedure requires it, repeat the measurement at the specified engine speed and with loads such as the headlights and cabin blower switched on.

Fluke lists 13.7–14.7 V as a general normal range for alternator output (Fluke). That is not a universal pass/fail range. Battery-management and variable-voltage charging systems may alter output with battery condition, temperature, electrical load and operating mode. Do not condemn an alternator from one idle reading; follow the model-specific procedure and use scan-tool data where required.

For a fuller decision path, see battery or alternator: diagnosing slow cranking and dim lights.

Interpret the three results together

• Low at rest, normal after charging: The battery was discharged. Consider short trips, accessories left on, charging trouble or an unwanted key-off load.
• Low again after sitting: Check for excessive parasitic draw and have the battery’s capacity or conductance tested.
• Good at rest, poor during cranking: Check terminal condition, cable voltage drop, starter current draw and battery health under load.
• Good cranking, abnormal running voltage: Test the charging system to the vehicle maker’s procedure.
• All readings normal but starting remains unreliable: Obtain a battery conductance/load test and starter and charging-system tests before buying parts.

The key distinction is state of charge versus state of health. Resting voltage estimates how charged the battery is; it cannot show how much cranking performance or reserve capacity remains. VARTA likewise recommends battery-technology-specific testing for AGM and EFB start-stop batteries because voltage alone does not establish their state of health (VARTA).
